TDA4VM ADAS ECU Cybersecurity Requirements

Secure Access (Diagnostics and Protected Services) Architecture Requirements - TDA4VM ADAS ECU

1. Functional Security Concept

1.1 Cybersecurity Goals (CSG)

1.2 Functional Security Concept (FSC)

1.3 Functional Security Requirements (FSR)

2. System Requirements and System Static Architecture

2.1 System entities

2.2 Trust boundaries and interfaces

graph LR
  Tester[Tester Tool] -->|UDS/Diag| GW[Gateway]
  GW --> DCM[DCM/SecurityAccess]
  DCM --> SRV[Protected Services]
  DCM --> LOG[Secure Logging]
  LOG --> Backend[Ops Backend]

2.3 System Requirements (SYSR)

3. Technical Security Concept

3.1 Technical Security Concept (TSC)

3.2 Technical Security Requirements (TSR)

4. Hardware Requirements and Hardware Static Architecture

4.1 Hardware elements

graph LR
  DCM[A72/R5F Diagnostic Comm Module] --> SA2UL[SA2UL Crypto Accelerator]
  DCM --> DMSC[DMSC Cortex-M3 SYSFW]
  DMSC --> EFUSE[eFuse SMPK/BMPK Key Store]
  DMSC --> SECTYPE[Device Security Type Config]
  SECTYPE --> JTAG[JTAG/Sec-AP Debug State]

4.2 Hardware Requirements (HWR)

5. Software Requirements and Software Static & Dynamic Architecture

5.1 Software blocks

graph LR
  Auth[Challenge/Response] --> Policy[Authorization Policy]
  Policy --> Gate[Protected Service Gate]
  Gate --> Svc[Service Handlers]
  Policy --> Sess[Session/Timeout Manager]
  Gate --> Log[Secure Logging]

5.2 Software Requirements (SWR)

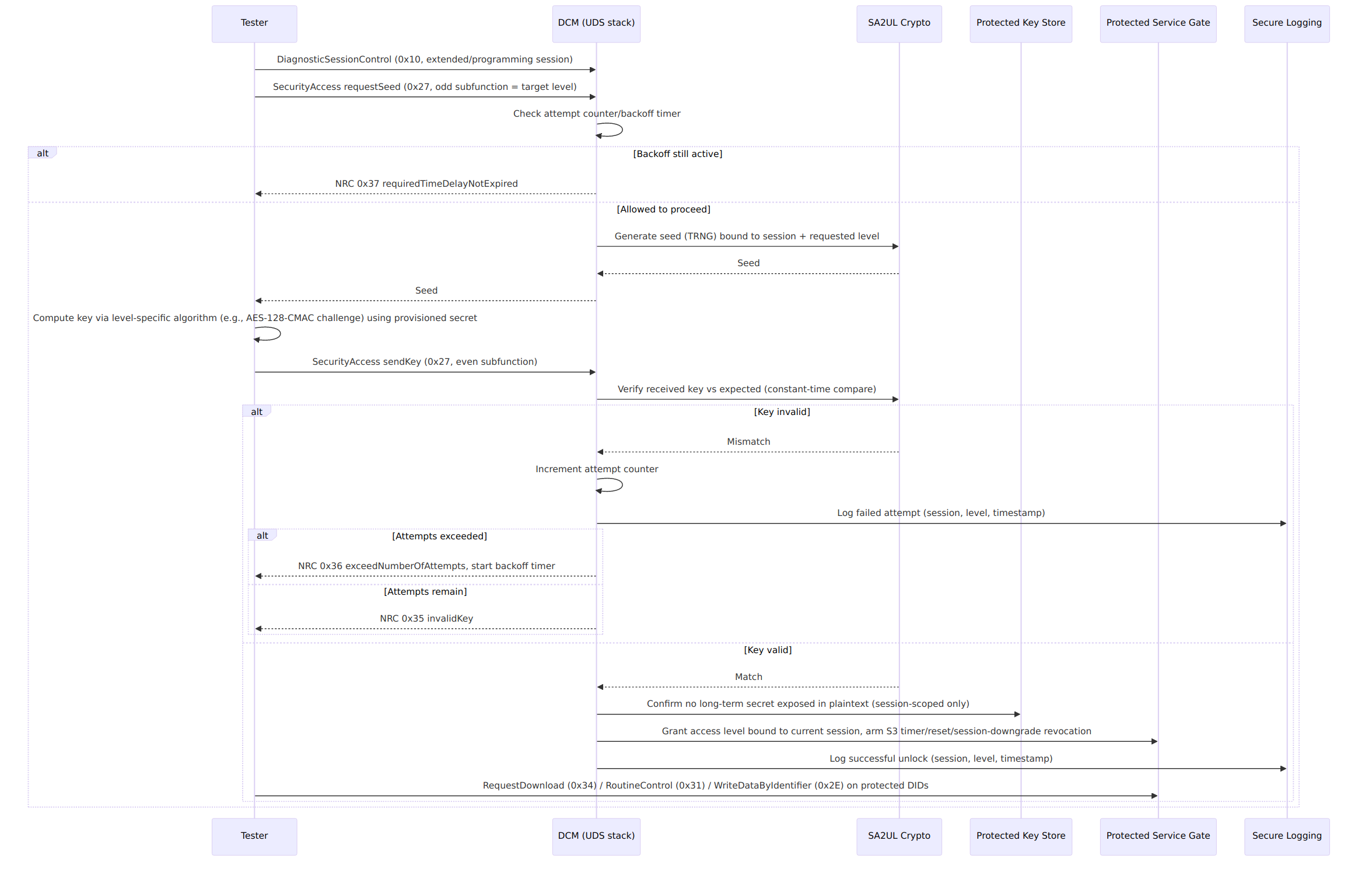

5.3 Secure access challenge-response flow (ISO 14229-1 SecurityAccess, service 0x27)

Secure access challenge-response flow (ISO 14229-1 SecurityAccess, service 0x27)

Mermaid source (for editing/regeneration)
sequenceDiagram
  participant T as Tester
  participant D as DCM (UDS stack)
  participant Y as SA2UL Crypto
  participant K as Protected Key Store
  participant G as Protected Service Gate
  participant L as Secure Logging

  T->>D: DiagnosticSessionControl (0x10, extended/programming session)
  T->>D: SecurityAccess requestSeed (0x27, odd subfunction = target level)
  D->>D: Check attempt counter/backoff timer
  alt Backoff still active
    D-->>T: NRC 0x37 requiredTimeDelayNotExpired
  else Allowed to proceed
    D->>Y: Generate seed (TRNG) bound to session + requested level
    Y-->>D: Seed
    D-->>T: Seed
    T->>T: Compute key via level-specific algorithm (e.g., AES-128-CMAC challenge) using provisioned secret
    T->>D: SecurityAccess sendKey (0x27, even subfunction)
    D->>Y: Verify received key vs expected (constant-time compare)
    alt Key invalid
      Y-->>D: Mismatch
      D->>D: Increment attempt counter
      D->>L: Log failed attempt (session, level, timestamp)
      alt Attempts exceeded
        D-->>T: NRC 0x36 exceedNumberOfAttempts, start backoff timer
      else Attempts remain
        D-->>T: NRC 0x35 invalidKey
      end
    else Key valid
      Y-->>D: Match
      D->>K: Confirm no long-term secret exposed in plaintext (session-scoped only)
      D->>G: Grant access level bound to current session, arm S3 timer/reset/session-downgrade revocation
      D->>L: Log successful unlock (session, level, timestamp)
      T->>G: RequestDownload (0x34) / RoutineControl (0x31) / WriteDataByIdentifier (0x2E) on protected DIDs
    end
  end

5.4 Behavioral requirement focus

6. Hardware-Software Interface (HSI)

6.1 HSI elements

6.2 HSI Requirements (HSI)

Interview Appendix: Expert Q&A (20 Questions)

The following expert-level Q&A set is intended for interview practice and design review on this topic.

# Question Difficulty Detailed answer Evidence
1 Why is SecurityAccess not treated as a simple login check? L1 In automotive diagnostics, SecurityAccess is a stateful challenge-response process designed to bind access to a session and to ensure freshness, not just possession of a static secret. A static password would be replayable and would not protect well against passive capture or repeated diagnostic probing. The design uses challenge-response logic so the ECU can ensure that the request is fresh and tied to the current session. ISO 14229 SecurityAccess principles, secure access requirements
2 What is the core security value of a fresh challenge in a SecurityAccess flow? L2 Freshness prevents an attacker from reusing an old valid key in a later diagnostic session or across a different vehicle context. If the request is tied to a nonce or challenge value, the ECU can confirm the response matches the current state and not a previously observed transaction. This reduces replay likelihood and strengthens the service against capture-and-repeat attack patterns. SecurityAccess requirements, ISO 14229
3 Why do repeated wrong sendKey values matter from a security perspective? L2 A wrong key is not just a benign failed service call; it is evidence of a probing attempt. Diagnostic ports are valuable attack surfaces, and repeated failures often lead to lockout or delay behavior to frustrate brute-force or oracle attacks. The state machine is designed to degrade the attacker’s ability to iterate through keys without making the service unusable for a legitimate tester. SecurityAccess state-machine requirements
4 What happens if a tester sends the same key again after an accepted session? L2 The system should treat it as a repeat of a previous response in a stateful session, and the service must enforce the correct transition rules. Accepting duplicate keys without a proper state change can weaken the whole flow by reducing the value of freshness and access sequencing. That is why the design includes explicit state transitions and session expectations, not only a pass/fail compare. SecurityAccess state-machine design
5 Why is SecurityAccess usually implemented with a key-verify flow instead of returning the secret itself? L3 Returning the secret would turn the ECU into a key-disclosure oracle and would create a direct confidentiality problem. A key-verify model allows the ECU to check whether the tester knows the correct secret without exposing the secret from the device. This is substantially safer because it narrows the secret to the verification logic and reduces the leak surface. SecureAccess requirements, hardware-protected key validation
6 What is the impact of a missing or broken state machine on a SecurityAccess implementation? L3 Without a proper state machine, an attacker or a malformed tester can reuse responses, skip required transitions, or exploit order assumptions. The result is a design that is hard to reason about and easier to brute force or bypass by protocol manipulation. The security value of the design comes not only from the key itself but from the correct sequence and isolation of state transitions. SecurityAccess state-machine design
7 Why is it important that SecurityAccess is separate from ordinary application data access? L2 Diagnostic services are often a special channel with different trust assumptions than the normal application runtime. If diagnostics were simply treated as ordinary user traffic, the system could accidentally grant broad access or bypass the intended security controls. Separation ensures the access-control policy is specific to the diagnostic interface and can be treated differently from normal vehicle functions. Diagnostic access control requirements
8 What is the attack opportunity of a replayed valid diagnostic key? L2 A replayed valid key allows a malicious actor to impersonate a trusted tester and continue using the diagnostic service without being the original legitimate actor. This undermines access accountability and can enable unauthorized software or parameter changes, especially if the ECU accepts the response without verifying freshness or state continuity. ISO 14229 SecurityAccess, replay prevention
9 Why is a strong SecurityAccess design not only about authenticity but also about access scope? L3 A tester may be authenticated but still should not get unrestricted access to all diagnostic functions. The design should gate which services are available after the key is accepted so the session matches the called service and the expected privilege model. This is a least-privilege issue that matters for safety and security. SecurityAccess policy design
10 What is the security consequence of a partial or broken key verification path? L2 If the ECU uses a weak verification path or exposes intermediate values, an attacker can recover enough information to refine guesses or bypass verification entirely. It also makes the system more difficult to validate in a repeatable and trustworthy way. The correct design ensures that the verification result is visible only as a final match or mismatch outcome, not as a leaky side channel. HSI-SA-3, constant-time verification concept
11 Why is it important that the secret is never returned to the calling software layer? L3 If the ECU returns the secret to the software interface, the secret now exists in host memory or a shared buffer, exposing it to memory attacks or unexpected code paths. A secure verification model keeps the secret in the protected domain and exposes only a match/mismatch result. This minimizes the number of copies of the secret and reduces the attack surface. HSI-SA-2, protected key store logic
12 How does the hardware/software split strengthen SecurityAccess? L2 The hardware portion can run the cryptographic verification in a protected context, while the software layer only manages session states and request sequencing. This reduces the chance that a compromised application layer can directly observe or manipulate the verification secret. The separation strengthens both confidentiality and integrity of the access control path. HSI-SA-1, HSI-SA-2, HSI-SA-3
13 Why is a seed-generation interface often restricted to the secure controller path? L2 If the challenge or seed is directly readable by the host or ordinary application software, the attacker can predict or replay it and use that information to refine access attacks. Restricting the interface to a protected controller ensures the seed is generated in a controlled environment and not observable through general-purpose software. HSI-SA-1
14 What is the practical difference between a secure vehicle tester and a generic off-board tool? L3 A secure vehicle tester should be able to satisfy the challenge-response model, operate under the proper state machine, and remain within the diagnostic policy envelope. A generic off-board tool without the right state or key material should be rejected even if it can send the correct protocol frames. This is why the service is both cryptographic and policy-driven. SecurityAccess state machine and policy
15 What is the major risk if challenge-response values are not properly tied to the session? L2 Without session binding, an attacker can reuse a valid response from one session in a different context or after the vehicle state has changed. That weakens the value of the challenge and allows cross-session replay or misuse. Session binding is therefore essential to the meaningful security of the protocol. SecurityAccess state binding design
16 Why does the repo emphasize constant-time verification in the hardware interface? L3 Timing side channels can leak whether a secret partially matches, allowing an attacker to infer the key or narrow the search space. Constant-time behavior prevents timing differences from exposing intermediate state. This is especially important for a diagnostic verifier that may be exposed to repeated probing attempts. HSI-SA-3
17 How do lockout and delay rules improve the SecurityAccess model? L2 They turn a protocol-level attack into a slower and much less useful operation. Every failed attempt reduces the attacker’s time budget and increases the cost of guessing or brute forcing. This does not replace cryptographic strength, but it improves resilience when an attacker is repeatedly probing the service. SecurityAccess lockout/delay behavior
18 Why is the proper handling of failed attempts important even when the key is strong? L2 A strong key alone does not prevent abuse if the service reveals too much information or allows unrestricted retries. Failures must be handled in a way that keeps the service available for legitimate use while making exhaustive probing impractical. The access-control design therefore combines cryptography, policy, and state handling. SecurityAccess response policy
19 How would you explain the SecurityAccess design to a skeptical stakeholder? L3 I would explain that the diagnostic interface is a privileged control path and must therefore behave like a challenge-response authentication system rather than a convenience service. The ECU verifies the value without exposing the secret, binds it to a fresh challenge and session, and enforces a state machine with controlled failure handling. This reduces both replay risk and brute-force risk while keeping legitimate service access intact. ISO 14229, secure access design principles
20 If you had to summarize the SecurityAccess principle in one sentence, what would it be? L1 SecurityAccess exists to ensure that a diagnostic tester proves freshness and knowledge of the correct secret in a controlled, stateful, and protected way before any privileged service is enabled. SecurityAccess state model, key verification design
